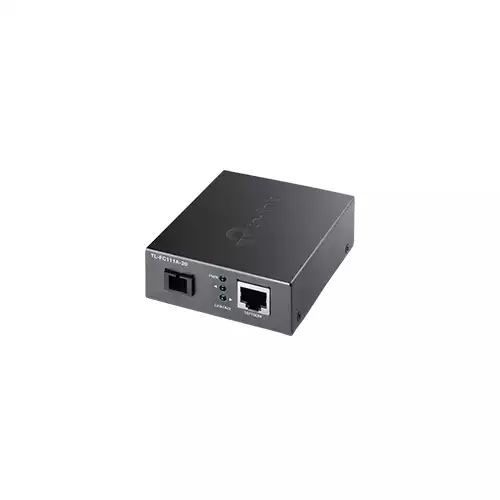

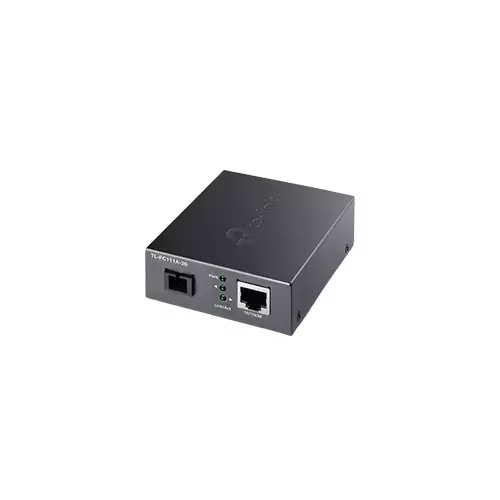

TP-LINK TL-FC111A-20 10/100 MBPS WDM MEDIA CONVERTER
TP-LINK TL-FC111A-20 SPECIFICATION |
| Standards and Protocols | IEEE802.3, IEEE802.3i, IEEE802.3u |
Operating Temperature | 0˚C to 50˚C (32˚F to 122˚F) |
| Storage Temperature | -40˚C to 70˚C (-40˚F to 158˚F) |
| Operating Humidity | 10% to 90% RH non-condensing |
| Storage Humidity | 5% to 90% RH non-condensing |
| Interface |
|
Network Media | 100BASE-Tx: 2-pair UTP/STP of Cat. 5 or above (≤100 m) |
| Power Supply | External Power Adapter: 5 V/0.6 A |
| LED | PWR, Link/Act |
| Dimensions ( W x D x H ) | 94.5*73*27 mm |
| Wave Length | 1550 nm TX, 1310 nm RX |
| Standards and Protocols | IEEE 802.3, IEEE 802.3i, IEEE802.3u |
| Basic Function |
|
| Ports |
|
| WDM TX | 1550 nm |
| WDM RX | 1310 nm |
| Network Media 10BASE-T |
|
| Network Media 100BASE-T |
|
| Network Media 100BASE-FX | Single-mode fiber |
| LED Indicators | PWR, Link/Act |
| Dimensions (W*D*H) |
|
| Power Supply | External Power Adapter: 5 V/0.6 A |
| Safety & Emission | FCC, CE, RoHS |
| Fiber Type | 9/125 μm single-mode fber (≤20 km) |
| Environment |
|
TP-LINK TL-FC111A-20 10/100 MBPS WDM MEDIA CONVERTER IN BANGLADESH
FEATURES
- Complies with 802.3u 10/100Base-TX, 100Base-FX standards
- Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
- 9/125 μm SMF (Single-Mode Fiber)
- Bidirectional WDM communication on a single fiber
- Ranges up to 20km (12.4 miles)
- Work with TL-FC111B-20 as a pair
What This Product Does
TL-FC111A-20 is a 100M media converter, providing a 100M RJ-45 port and a 100M SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.
How This Product Works
TL-FC111A-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20km (12.4 miles) over only one fiber, which saves half of the cable deployment cost for customers. TL-FC111A-20 transmits data at 1550nm wavelength and receives data at 1310nm wavelength on optical fiber. The TL-FC111A-20 works on the other end as a pair by receiving data at a wavelength of 1550nm and sending data at a wavelength of 1310nm.
