Tenda TEF1218P 16-Port 10/100Mbps + 2 Gigabit Smart PoE Switch

Tenda TEF1218P 16-Port 10/100Mbps + 2 Gigabit Smart PoE Switch

Tenda TEF1218P switch supports 16 PoE ports Smart  Switch , which can supply power to most powered devices through 8-core Ethernet cable, & the total PoE power can be up to 230 W while each PoE port can support the maximum PoE power of 40 W. In reality surveillance project, cameras are generally installed outdoors or in high position.

As a result of the individual equipment damaged, or lead to the whole local area network (LAN) paralysis, Tenda TEF12 series switches are designed with professional ports and lightning protection up to 6 KV , with two kinds of protection design respectively and effectively restrain the power of lightning from cable . In the complex surveillance environment, when making cabling and networking, it generally encounter the problem of inadequate network transmission distance, the distance of each camera terminal to the monitoring center is different, some only a few meters, while some are more than kilometers. Tenda TEF12 series PoE monitoring switches with exclusive patent network extension technology and using the common existing twisted pair.  PoE power supply can meet the needs of HD camera and other power supply equipment.

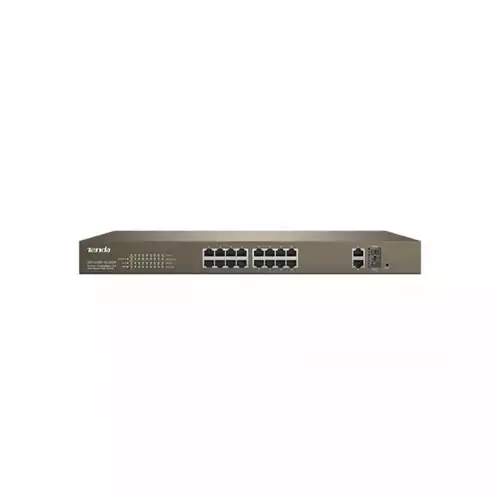

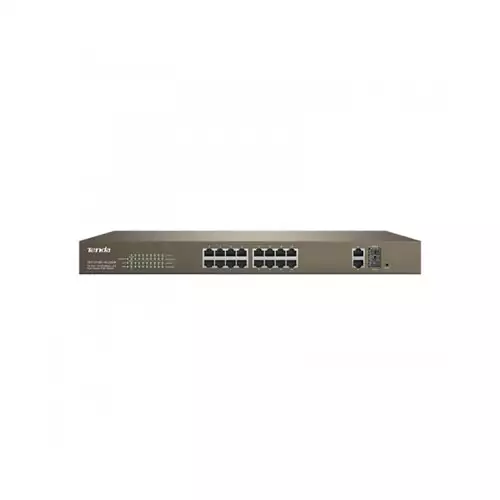

Tenda TEF1218P 16-Port smart switch View

PoE power supply management: Support over temperature protection for PoE module Support graphical management detection of PD equipment. Security features: MAC-Port Binding. VLAN: Supports Port VLAN Supports 802.1Q VLAN. Port aggregation: Static Trunk Supports 3 groups of 4-Port trunk support. Static Trunk Supports 3 groups of 4-Port trunk support: STP/RSTP. Multicast: IGMP (v1/v2) Snooping. Port Mirroring: N: 1 port mirroring. Quality of Service: 802.1p and DSCP priority re-marking Flow control Flexible queue scheduling algorithm can be set based on port and queue, support SP, WRR. Management and maintenance: Support SNMP v1/v2 and WEB-based management.

Tenda TEF1218P 16-Port smart switch Features

• Dedicated for Surveillance & SMB Networking
• 6KV lightning protection

• GE&SFP uplink ports

• Smart PoE Supply
• Smart Web management
• 250W Power Supply

• 6KV Excellent Lightning Protection


The switch offers various safety and protection types, including 6 kV lightning protection, PSE short-circuit protection, PoE overload protection, surge current protection etc., and these greatly protect the switch from being damaged by thunderstorm. Besides, it supports wide voltage input, AC：100-240V~50/60Hz.

Up to 250 meters long distance transmission under the Extend Modebeyond hundred meters transfer limitation

Due to the complex monitoring environment, the distance from each terminal to the monitoring center is different, some even more than hundred meters. TEF1218-16-250W can support 250 meters long distance transmission, which can save the cost of your project with less devices used.

Tenda TEF1218P 16-Port smart switch  Quick Overview

• PoE - Yes
• Type - Network Switch
• Form Factor - Desktop/Wall Mounting
• Manageability - Unmanaged
