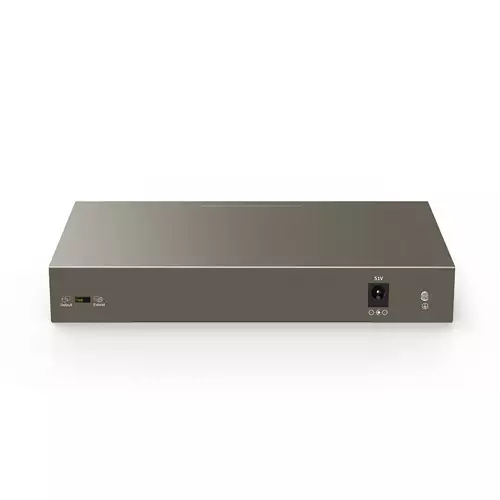

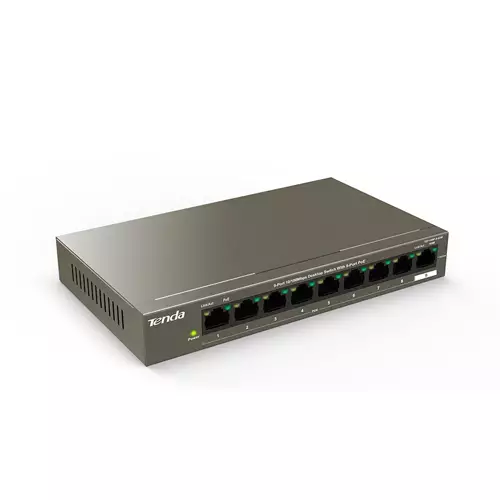

Tenda TEF1109P 9-Port 10/100Mbps Desktop Switch With 8-Port PoE

Tenda TEF1109P 9-Port 10/100Mbps Desktop Switch

Tenda TEF1109P 9-Port 10/100Mbps Desktop Switch has the network extension technology. Based on the original twisted pair, it can support up to 250 meters long distance transmission, breaking the hundred meters transfer limit. With 6KV lightning protection, it is the real monitoring private switch. Ports 1-8 support IEEE 802.3at and IEEE 802.3af PoE standard. It provides a maximum PoE output power of 30W to each port and 58W to the whole device.

Up to 250 meters long distance transmission, beyond hundred meters transfer limit

Due to the complex monitoring environment, when making cabling and networking, it is usual to encounter the problem of inadequate network transmission distance, the distance of each camera terminal to the monitoring center is different, some are only a few meters, some are hundred meters, while others are more than kilometers. Tenda TEF11 series PoE monitoring switches, exclusive patent network extension technology, use the common existing twisted pair, can support 250 meters data transmission, break the transmission limit of the existing twisted pair only for one hundred meters; Provide gigabit linked SFP port, can meet the demand of transmission to a few tens of kilometers.

Outstanding PoE Power Supply

Ports 1-8 support IEEE 802.3at and IEEE 802.3af PoE standard. It provides a maximum power supply of 30W to each port and 58W to the whole device.
