Gigabyte Z690 Aorus Elite Ax Motherboard in Bangladesh

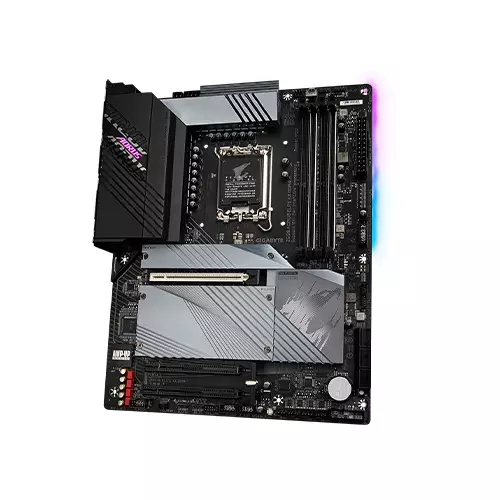

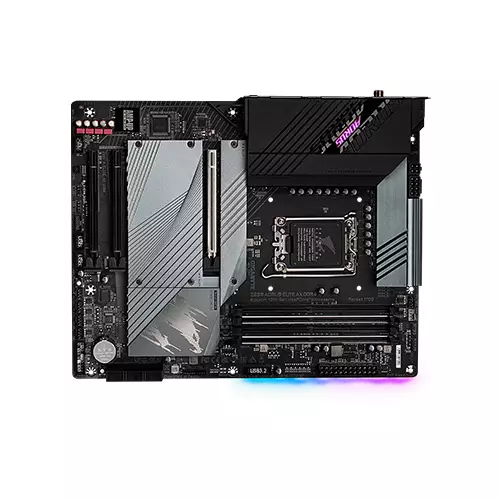

Unlock the potential of your gaming-focused build with the Z690 AORUS ELITE AX DDR4 LGA1700 ATX Motherboard from GIGABYTE. Robust connectivity options and enhanced electrical stability enables you to install resource-demanding components, making this motherboard ideal for gaming enthusiasts.

At the heart of the Z690 AORUS ELITE AX is the Intel Z690 chipset, giving you access to an LGA1700 socket, four dual-channel DDR4 memory slots, six SATA III ports, and four M.2 PCIe 4.0 interfaces, all working together to optimize overall system performance. Connect a wide range of graphics and utility cards with one PCIe 5.0 x16 and two PCIe 3.0 x16 slots. USB 3.2 Gen 1 and Gen 2 ports allow you to quickly transfer data with speeds up to 5 and 10 Gb/s, respectively. USB 2.0 Type-A ports allow you to use peripherals like mice and keyboards while Bluetooth 5.2 provides wireless support for select devices. A single USB 3.2 Gen 2x2 Type-C port unlocks support for power-hungry devices like mass storage arrays and various interfaces. Connect to your home network and compete online with Wi-Fi 6 (802.11ax) technology or use the onboard Realtek 2.5 Gigabit Ethernet port if you prefer a wired connection. Experience immersive audio with Realtek High Definition sound backed by Hi-Res Audio certification.

Power Design

Designed to ensure optimal performance with Intel 12th Gen processors, the Z690 AORUS ELITE AX uses a unique VRM layout designed to unleash the full potential of your CPU. Multi-core CPU performance uses 16 VCORE phases with a 90A Power Stage, one VCCGT phase with 60A Power stage for integrated graphics, and two CVVAUX phases with 70A DrMOS to stabilize power for CPU integrated PCIe and memory controllers. A single PCIe 5.0 slot provides up to 128 GB/s bandwidth while the 6-layer PCB offers efficient dissipation. Additionally, you get access to RAID storage solutions for your M.2 NVMe and SATA drives with sequential data transfer speeds up to 21053 MB/s. With DDR4 XMP support, you can install and overclock your memory modules up to 5333 MHz for enhanced overclocking.

Thermal Solutions

Keep your components nice and cool while under extreme thermal pressure with integrated cooling solutions that include a Fully Covered MOSFET Heatsink, 5 W/mK Thermal Pad, Enlarged Thermal Guard, M.2 Thermal Guard II, and 2x Copper PCB. The MOSFET Heatsink offers a 2x large surface area and is constructed from a single piece with various inlets allowing proper airflow. The M.2 heatsinks and thermal pads reduce heat buildup within your storage devices. Dual-layer copper design improves temperature efficiency with higher thermal conductivity and lower impedance. Smart Fan 6 leverages multiple fan headers and temperature sensors to monitor and execute fan protocols automatically or leave control in your hands with custom settings.

Connectivity Options and Enhancements

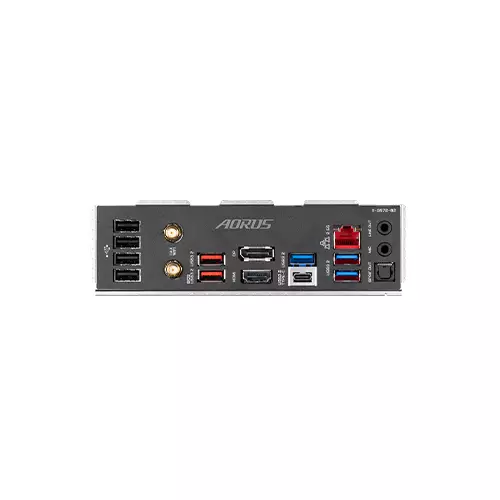

Connect to your network wirelessly with Wi-Fi 6 (802.11ax) technology or use the integrated 2.5 Gigabit Ethernet LAN port. USB 3.2 Gen 2x2 offers data transfer speeds up to 20 Gb/s, allowing you to use demanding devices like mass storage arrays and more. The Realtek ALC1220-VB Codec provides immersive sound backed by Hi-Res Audio certification. Smart Headphone Amp auto-detects headphone impedance and reduces distortion so your teammates can hear you clearly.

System Configuration

Fine-tune your experience with an array of settings and options with UEFI BIOS or use GIGABYTE's EasyTune software, giving you an easy-to-use interface. System Information Viewer gives you a one-stop location that provides you with in-depth status monitoring and customization ideal for those who wish to unlock the full potential of their build.

Personalization

Illuminate your PC in a flood of color and effects with free RGB FUSION 2.0 software, allowing you to add a sense of personalization to your build.

Q-Flash

Update the BIOS of your system without installing the CPU, memory, and graphics card with Q-Flash. Simply install the latest file to a USB drive, plug it into the designated USB port, and press the Q-Flash button and it will automatically update.

Solid Pin

Solid Pin design gives power connectors larger contact area for stable electrical signals, providing a longer lifespan and heat reduction.
